Centrifugal Oil Pump

The centrifugal oil pump can transport diesel, gasoline, kerosene, seawater; Botou production of Haina Pump, centrifugal oil pump.

Product Overview
Specifications

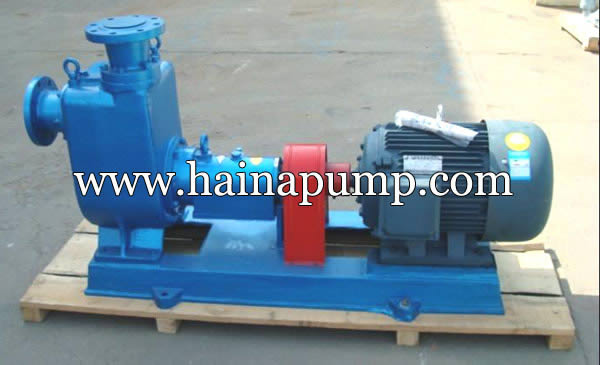

CYZ CYZ Self-priming Centrifugal Oil Pump
Capacity: 3.2-800m3/h
Head: 12-80m
Speed:1450-2900r/min
Temperature: -15~80 degree

The unit production of CYZ Self-priming centrifugal oil pump in accordance with the relevant technical information abroad by the digestion, absorption, improved from the development of new products, the pump for the oil industry, land-based depots, ideal for product tanker and suitable for marine cargo pumps, bilge and ballast water circulation pumps and cooling machines, etc., were transported gasoline, kerosene, diesel, jet fuel and other petroleum products and water, water, medium temperature -20 °C -80 °C, such as transmission fluid could be replaced by chemical corrosion-resistant mechanical seals.
Features
Simple structure
Easy to operate
Smooth operation
Easy maintenance
High efficiency
Long life
Strong self-absorption capacity
Durable
10-inch-centrifugal-oil-pump

Centrifugal Oil Pump Parameter Data:

No.	Model	Capacity		Lift m	Pump NPSH m	Self-priming min/5m	Speed r/min	Shaft power kw	Diameter mm	Centrifugal Oil Pump with Motor
No.	Model	m 3 /h	L/min	Lift m	Pump NPSH m	Self-priming min/5m	Speed r/min	Shaft power kw	Diameter mm	Model	Power kw
1	25CYZ-27	3	50	27	3	3	2900	0.6	25	YB801-2	0.75
2	40CYZ-20	6.3	105	20	3.5	2	2900	0.88	40× 32	YB802-2	1.1
3	40CYZ-40 (50CYZ40)	10	167	40	3.5	1.5	2900	2.8	50× 40 (50)	YB112M-2	4
4	50CYZ-12	15	250	12	3.5	2.5	2900	1.1	50	YB90S-2	1.5
5	50CYZ-20	18	300	20	3.5	2	2900	1.8	50	YB90L-2	2.2
6	50CYZ-35	14	233	35	3.5	1.5	2900	2.7	50	YB112M-2	4
7	50CYZ-50	12.5	208	50	3.5	1.5	2900	4.3	50	YB132S1-2	5.5
8	50CYZ-60	15	250	60	3.5	1.5	2900	6.3	50	YB132S2-2	7.5
9	50CYZ-75	20	333	75	3.5	1.5	2900	9.9	50	YB160M1-2	11
10	65CYZ-15	30	500	15	4	2	2900	1.92	65	YB100L-2	3
11	65CYZ-30	25	416	30	4	2	2900	3.2	65	YB112M-2	4
12	80CYZ-13	35	583	13	4	3.5	2900	1.9	80	YB100L-2	3
13	80CYZ-17	43	716	17	4	2	2900	3.1	80	YB112M-2	4
14	80CYZ-25	50	833	25	4	1.5	2900	5.2	80	YB132S2-2	7.5
15	80CYZ-32	50	833	32	4	1.5	2900	6.8	80	YB132S2-2	7.5
16	80CYZ-55	60	1000	55	4	1.5	2900	15.0	80	YB160L-2	18.5
17	80CYZ-70	60	1000	70	4	1.2	2900	20.1	80	YB180M-2	22
18	100CYZ-40	100	1667	40	4	2	2900	18.3	100	YB180M-2	22
19	100CYZ-65	100	1667	65	4	2	2900	27.7	100	YB200L1-2	30
20	100CYZ-75	70	1167	75	4	2	2900	24.2	100	YB200L1-2	30
21	150CYZ-55	160	2667	55	5	2	2900	38.1	150	YB225M-2	45
22	150CYZ-65	170	2833	65	5	1.3	1470	51.0	150	YB250M-4	55
23	200CYZ-63	280	4667	63	5	1.5	1480	75.1	200	YB280M-4	90
24	250CYZ-50	400	6666	50	6	1.5	1480	77.2	250	YB280M-4	90
25	300CYZ-50	500	8333	50	5	2	1450	77.2	300	YB280M-4	90
26	300CYZ-32	600	9999	32	5	2	1450	77.2	600	YB280M-4	90

Production characteristics :

1.The cyz Centrifugal Oil Pump is a kind of self-suction centrifugal pump, which has the advantages of simplified structure, convenient operation, steady running, easy maintenance, high efficiency, long life, strong self-suction ability and so on. It doesn't need a foot valve on the pipeline, and just need to ensure that there is quantificational inducting oil stored in the pump case before work. When used on oil tankers or water-carriage ships, it can also be used as cabin-sweeping pump, with good performance....

2.The pump is made with extra care of high-grade materials. The seal adopts mechanical seal with hard alloy and wears well. The outlet pipeline doesn't need to install a relief valve and the inlet pipeline doesn't need a foot valve, so as to simplify the pipeline system and improve the working condition.
