Model: Y series External gear pumps
Packaging Detail: Wooden case or as requirement
Delivery Detail: Within 3-7 days after received payment

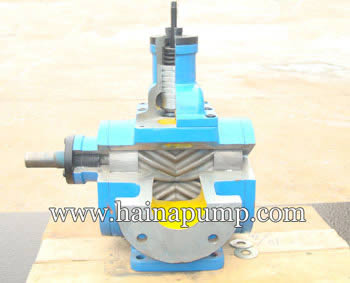

Y series External gear pumps uses for conveying various oils, such as heavy oil, diesel oil, lubricating oVerifieil etc.
Oil can be used as a transmission system, booster pumps.
In the fuel system can be used as conveying, pressurizing, ejecting the fuel pump.
In the hydraulic system can be used as a hydraulic pump to provide hydraulic power.
In all industrial fields, may be useful as a lubricating oil pump.
Structural features
Y series External gear pumps is the pump, pump cover, gear, bearing sleeve and shaft seals and other parts. Gear after nitrogen treatment, high hardness and wear resistance, together with the shaft mounted within the sleeve. Its transport medium lubricate all moving parts within the pump.
External gear pumps within four bearing sleeve installed in the pump body, with the size of the working pressure automatically adjusts face clearance gear pump pressure is stable, the output flow pulsation, the volume is high.
Y series External gear pumps structure of the series is simple and compact, and easy maintenance, strong adaptability and high efficiency.
1, the series External gear pumps for conveying various oils, such as heavy oil, diesel oil, lubricating oil, with copper gear transport within the low point of liquid, such as gasoline, benzene, and the unit also produces stainless steel gear pump can transport drinks and corrosive liquids.
2, External gear pumps does not apply with hard particles or fibers, the applicable viscosity of 5-1500cst, the temperature is not higher than 380 ° C; For transporting hot liquids, use high temperature gear pump.
Second：the principle
External gear pumps in the pump body equipped with a pair of rotary gear, one active and one passive, rely on the mutual engagement of the two gears, the entire pump working chamber is divided into two separate parts, the suction chamber and a discharge chamber; pump operation when the gear driven by the driven gear to rotate, when the teeth of disengaging from the engagement to form a partial vacuum on the suction side, the liquid and the liquid is sucked full gear tooth valley brought to the discharge side of the gear into engagement when the liquid is extrusion, forming the high pressure liquid outside the discharge pump and the outlet of the pump.
|
Model |
Capacity
Q
|
Speed
n
r/min |
Pressure
p
Mpa |
(NPSH)r
m |
Efficiency
η
% |
Motor
|
||
|
m3/h
|
Hz
|
KW
|
Model |
|||||
|
Y0.6-0.6
|
0.6
|
910
|
0.6
|
5.5
|
32
|
50
|
0.75
|
Y90S-6
|
|
1.0 |
1390 |
50
|
0.75
|
Y80L2-4
|
||||
|
0.7
|
1130
|
60
|
0.75
|
Y90S-6
|
||||
|
1.2 |
1710
|
60
|
0.75
|
Y80L2-4
|
||||
|
Y0.6-1.6
|
0.6
|
910
|
1.6
|
7.0
|
70
|
50
|
1.1
|
Y90L-6
|
|
1.0
|
1400
|
50
|
1.5
|
Y90L-4
|
||||
|
0.7
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
1.2
|
1710
|
60
|
1.1
|
Y90S-4
|
||||
|
Y1.6-0.6
|
1.6
|
910
|
0.6
|
5.5
|
42
|
50
|
0.75
|
Y90S-6
|
|
2.5
|
1400
|
50
|
1.1
|
Y90S-4
|
||||
|
1.9
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
3.0
|
1710
|
60
|
1.5
|
Y90L-4
|
||||
|
Y1.6-1.6
|
1.6
|
940
|
1.6
|
7.0
|
71
|
50
|
2.2
|
Y112M-6
|
|
2.5
|
1440
|
50
|
4 |
Y112M-4
|
||||
|
1.9
|
1150
|
60 |
2.2
|
Y112M-6 |
||||
|
3.0
|
1750
|
60
|
4
|
Y112M-4 |
||||
|
Y3.3-0.6
|
3.3
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
5.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.0
|
1150
|
60
|
1.5
|
Y100L-6
|
||||
|
6.0
|
1730
|
60
|
2.2
|
Y100L1-4
|
||||
|
Y3.3-1.6
|
3.3
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
5.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.0
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
6.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
Y4-0.6
|
4.0
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
6.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.8
|
1150
|
60
|
2.2 |
Y112M-6
|
||||
|
7.2
|
1730
|
60
|
3
|
Y100L2-4 |
||||
|
Y4-1.6
|
4.0
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
6.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.8
|
1170
|
60
|
5.5
|
Y132M-6 |
||||
|
7.2
|
1750
|
60
|
7.5
|
Y132M-4 |
||||
|
Y8-0.6
|
8.0
|
960
|
0.6
|
5.0
|
61
|
50
|
3
|
Y132S-6
|
|
12.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
9.6
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
14.4
|
1750
|
60
|
5.5
|
Y132S-4
|
||||
|
Y8-1.6
|
8.0
|
970
|
1.6
|
7.0
|
75
|
50
|
11
|
Y160L-6
|
|
12.0
|
1460
|
50
|
15
|
Y160L-4
|
||||
|
9.6
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
14.4
|
1760
|
60
|
15
|
Y160L-4
|
||||
|
Y10-0.6
|
10.0
|
960
|
0.6
|
5.0
|
62
|
50
|
4
|
Y132M1-6
|
|
15.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
12.0
|
1170
|
60
|
5.5
|
Y132M2-6
|
||||
|
18.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
Y10-1.6
|
10.0
|
970
|
1.6
|
7.0
|
76
|
50
|
11
|
Y160L-6
|
|
15.0
|
1470
|
50
|
15
|
Y160L-4
|
||||
|
12.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
18.0
|
1770
|
60
|
18.5
|
Y160L-4
|
||||
|
Y20-0.6
|
20.0
|
970
|
0.6
|
5.0
|
68
|
50
|
7.5
|
Y160M-6
|
|
24.0
|
1170
|
60
|
7.5
|
Y160M-6
|
||||
|
Y25-0.6
|
25.0
|
970
|
0.6
|
5.5
|
69
|
50
|
11
|
Y160L-6
|
|
30.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
Y30-0.6
|
30.0
|
970
|
0.6
|
5.5
|
70
|
50
|
11
|
Y160L-6
|
|
36.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
Y40-0.6
|
40.0
|
970
|
0.6
|
5.5
|
72
|
50
|
15
|
Y180L-6
|
|
48.0
|
1180
|
60
|
15
|
Y180L-6
|
||||
|
Y50-0.6
|
50.0
|
970
|
0.6
|
5.5
|
72
|
50
|
22
|
Y200L2-6
|
|
60.0
|
1180
|
60
|
22
|
Y200L2-6
|
||||
